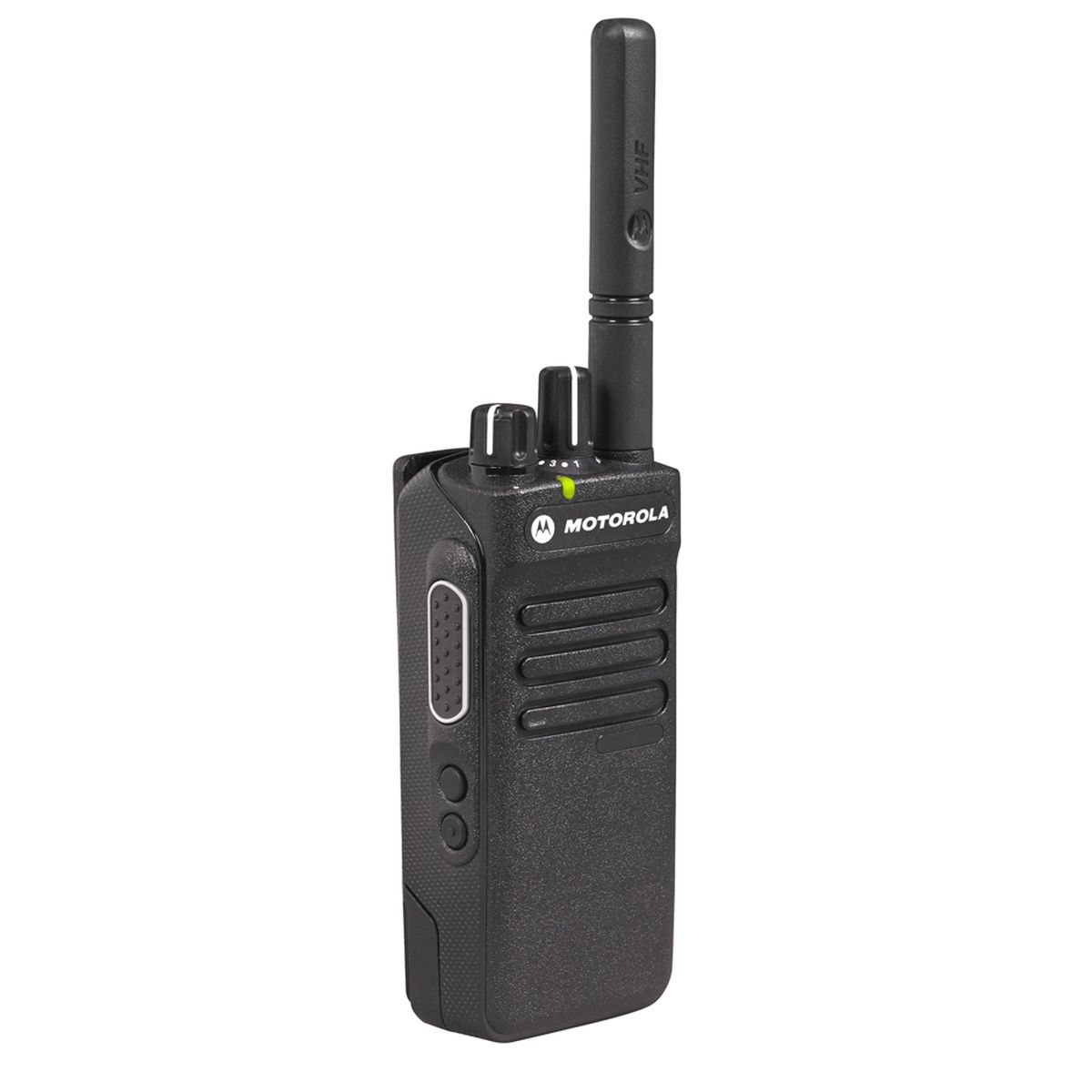

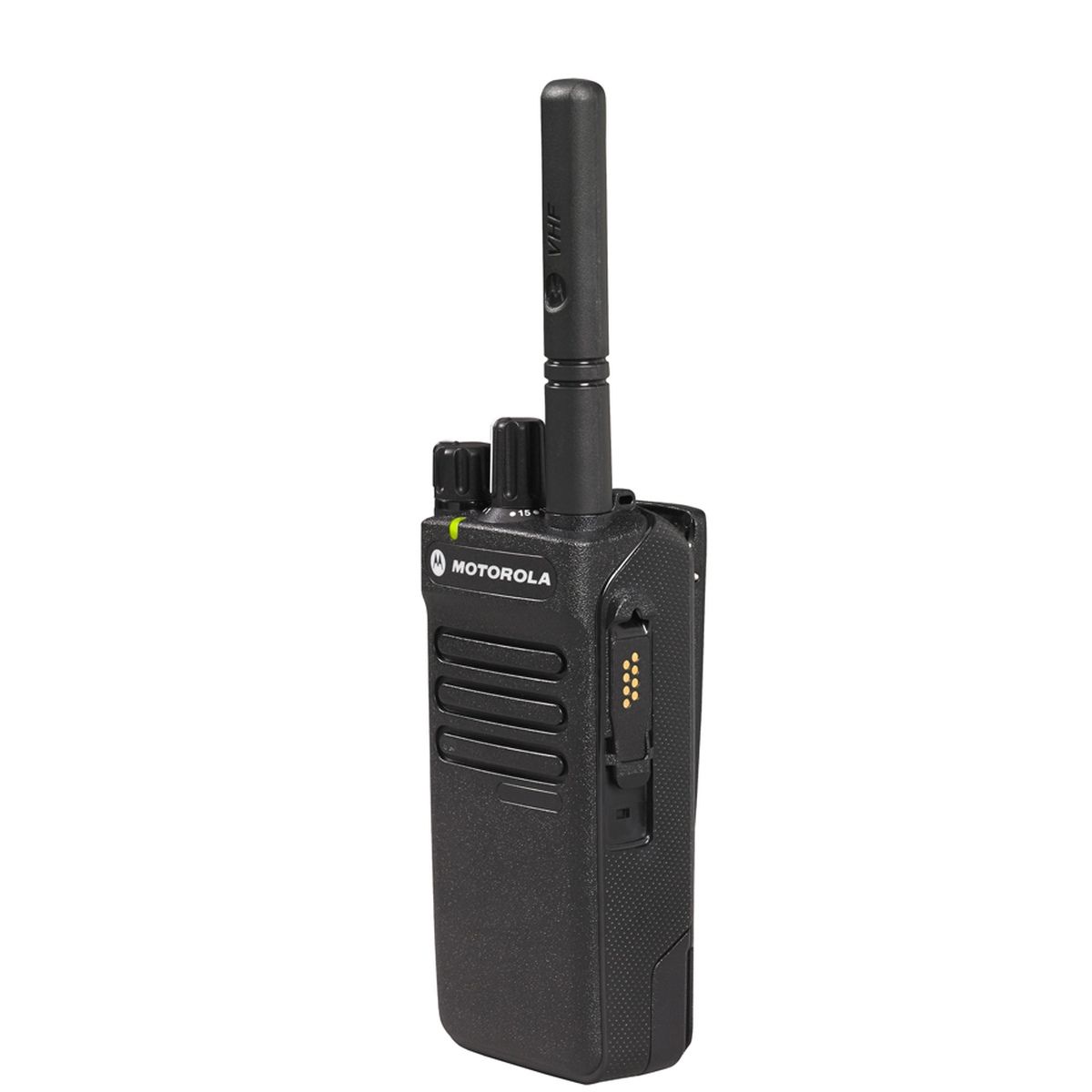

Mototrbo XiR P6600i
Mototrbo XiR P6600i offers game-changing audio capabilities in a rugged, future-ready device. Its advanced audio processing ensures that your communications are loud and clear, while its rugged construction is ready for harsh environments, and advanced connectivity options get your workforce ready for tomorrow.
Mototrbo XiR P6600i
General Specifications
- Frequency Range: 403–527 MHz (UHF), 136–174 MHz (VHF)
- Channel Capacity: 32
- Channel Spacing: 12.5kHz, 25kHz
- Operating Voltage: 7.5V DC
- Dimensions (H × W × D) with Standard Battery: 122mm × 56mm × 42mm
- Weight with Standard Battery: 285g
- Standard Battery Capacity: 2450mAh
- Battery Life (Typical Cycle):
Analog: 21.5 hours / 22 hours
Digital: 16.5 hours / 17 hours - LCD Display: Non Display
RF Specification
- RF Power Output:
UHF: 1W / 4W
VHF: 1W / 5W - Sensitivity:
Analog: 0.16 µV
Digital: 0.14 µV
Environmental
- Operating Temperature: -30°C to +60°C
- Storage Temperature: -40°C to +85°C
- Dust & Water Protection: IEC 60529 – IP67
- Electrostatic Discharge: IEC 61000-4-2 Level 4
- Packaging Test: MIL-STD 810D and E
- HazLoc Certification:
Xir P6600i Series radios are UL-Approved to TIA-4950 for use in hazardous locations:
Division 1: Class I, II, III, Groups C, D, E, F, G
Division 2: Class I, Groups A, B, C, D
(When properly equipped with UL-Approved battery)
