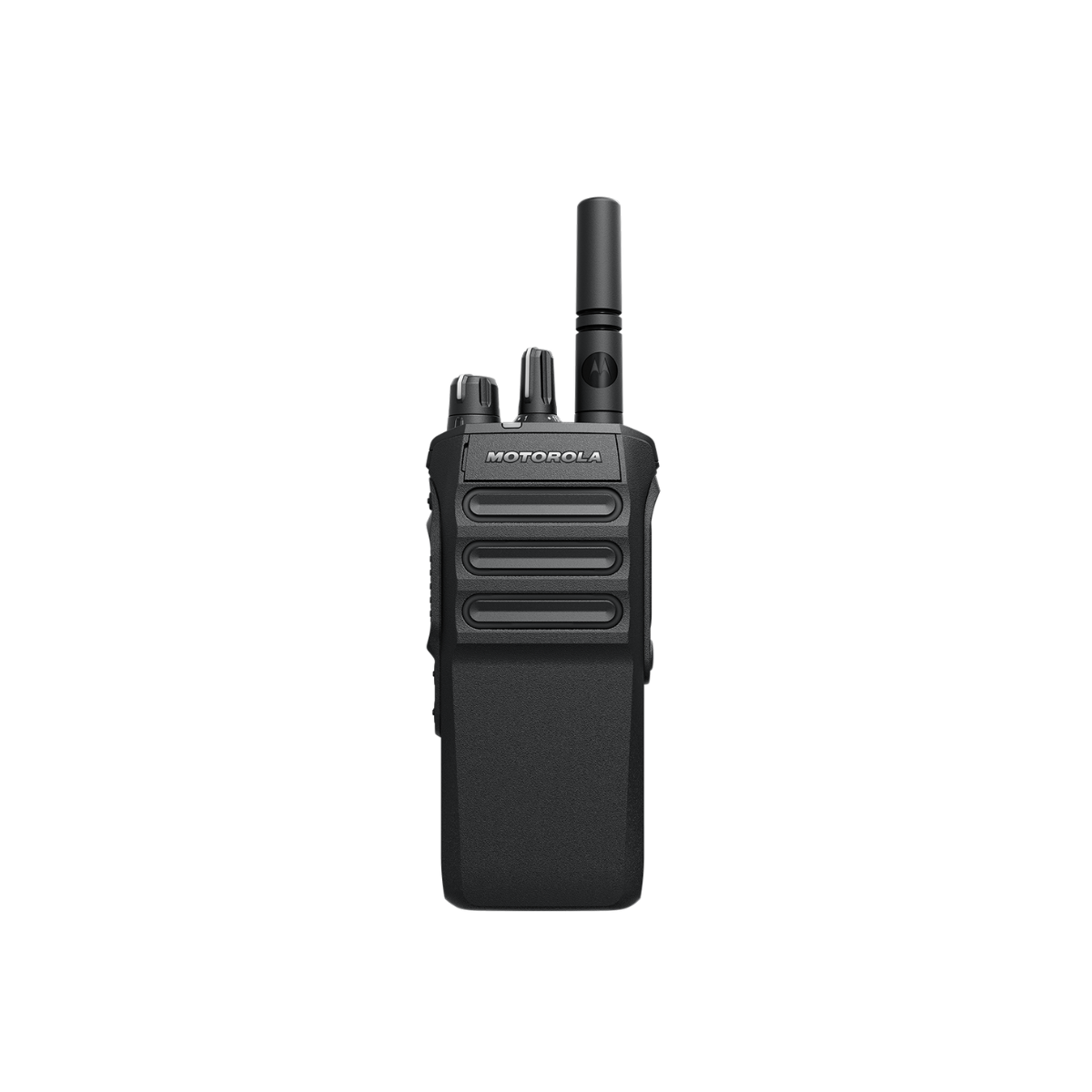

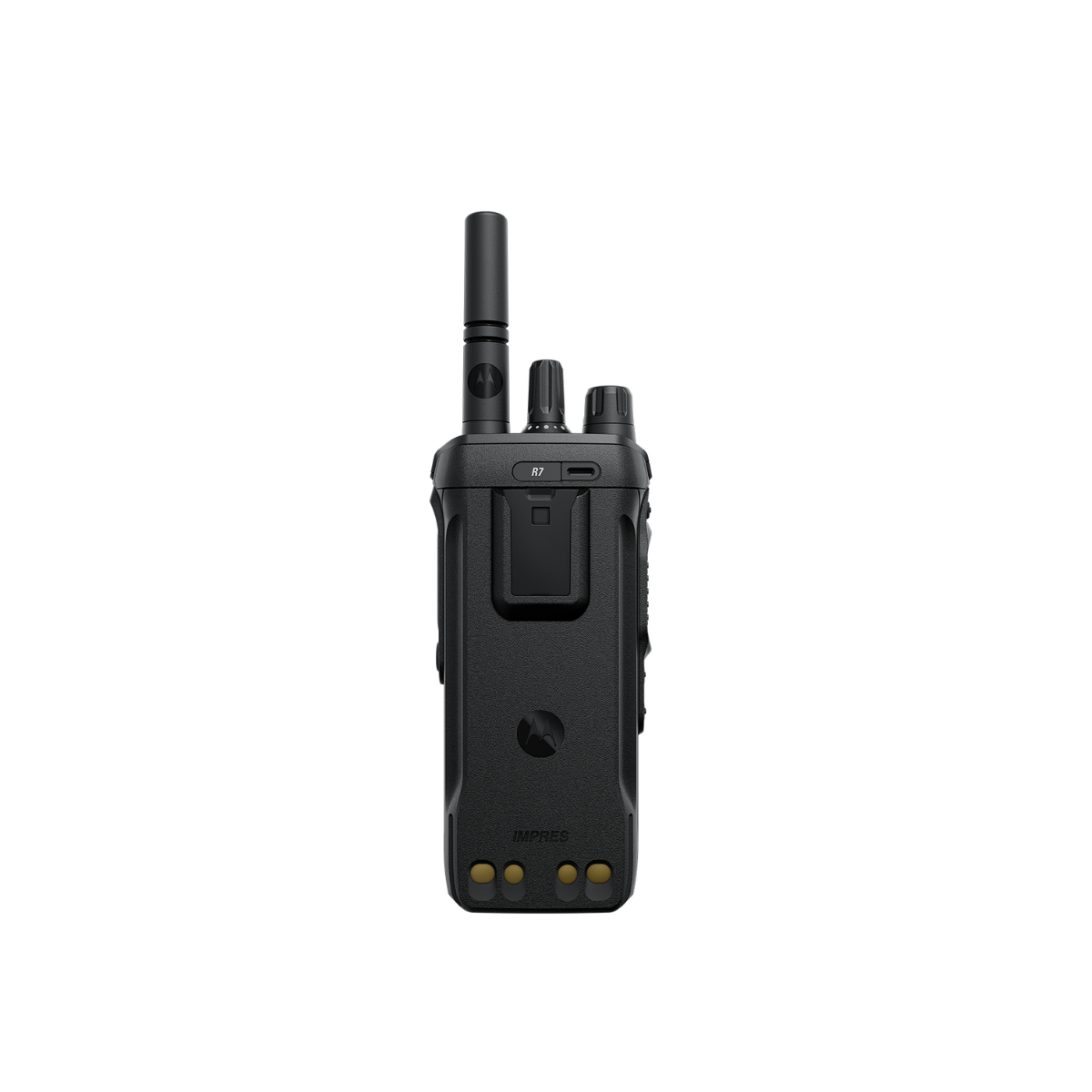

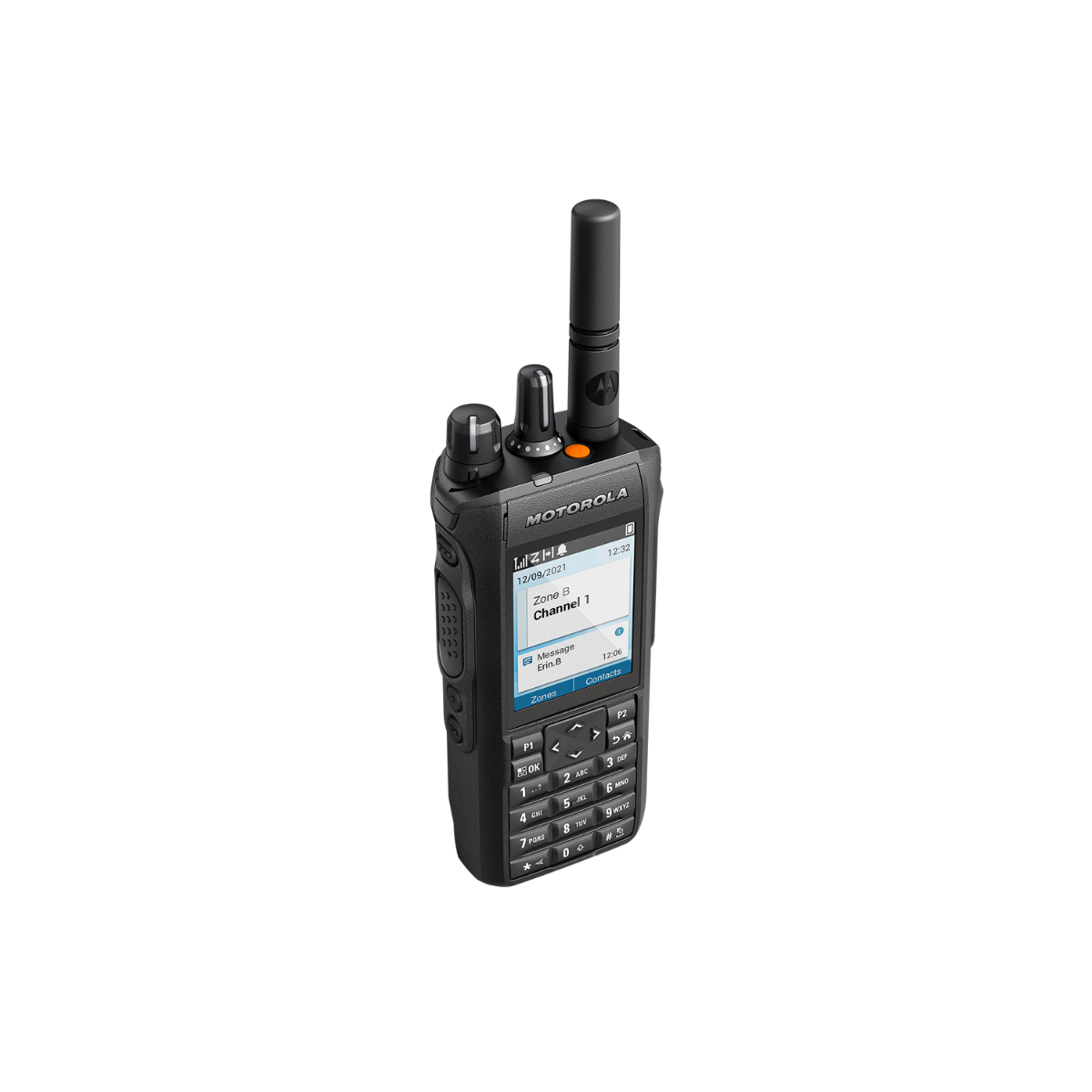

Mototrbo R7

MOTOTRBO R7 offers game-changing audio capabilities in a rugged, future-ready device. Its advanced audio processing ensures that your communications are loud and clear, while its rugged construction is ready for harsh environments, and advanced connectivity options get your workforce ready for tomorrow.

Portfolio Image
Portfolio Image
Portfolio Image
Gallery Image
Gallery Image
Gallery Image
Gallery Image

Mototrbo R7

BROCHURE

General Specifications

  • Frequency Range: 400–527MHz (UHF), 136–174MHz (VHF)
  • Channel Capacity: 1000 (FKP) / 64 (NKP)
  • Channel Spacing: 12.5kHz, 20kHz, 25kHz
  • Operating Voltage: 7.5V DC
  • Dimensions (H × W × D): 131.8mm × 56mm × 34.7mm (FKP)
    131.8mm × 56mm × 31.3mm (NKP)
  • Weight (with battery): 316g (FKP), 289g (NKP)
  • Battery Capacity: 2200mAh
  • Battery Life: Analog: 20 / 15 Hours
    Digital: 19 / 14.5 Hours
  • LCD Display: QVGA display, up to 10 lines of text (full keypad model)

RF Specification

  • RF Power Output: UHF: 1W / 4W
    VHF: 1W / 5W
  • Sensitivity: Analog: 0.16 µV
    Digital: 0.14 µV

Environmental

  • Operating Temperature: -30°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Dust & Water Protection: IEC 60529 – IP68 Capable
  • Electrostatic Discharge: IEC 61000-4-2 Level 4
  • Packaging Test: MIL-STD 810D and E
  • HazLoc Certification: UL-Approved to TIA-4950 for use in Hazardous Locations:
    Division 1: Class I, II, III, Groups C, D, E, F, G
    Division 2: Class I, Groups A, B, C, D
    (When properly equipped with Motorola UL-Approved battery)
